basic tree

Download python source

Code

import baltic as bt
from baltic import bt_utils

import matplotlib as mpl
from matplotlib import pyplot as plt
from matplotlib.gridspec import GridSpec

mpl.use("Agg")

treestring = '((("A":1,"B":1):1,"C":2):1,"D":3);'
ll = bt.make_tree(treestring, 'divergence')
ll.treeStats()

fig = plt.figure(figsize=(5,5),facecolor='w')
gs = GridSpec(1,1)

ax = plt.subplot(gs[0])

ll.plot_tree(ax)
ll.plot_text(ax, xCoordinateFxn=lambda k: k.x+0.1, size = 26)
ll.plot_points(ax)

bt_utils.plot_scale_bar(ax, xy = (0.5, 0.1), tree = ll, style = 'fancy', textKwargs={'fontsize': 18})
bt_utils.clean_axes(ax)

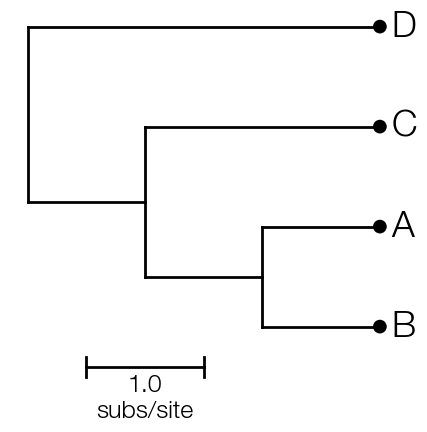

plt.savefig('basic-tree.png', bbox_inches='tight')
